CertaUPSC200

CertaUPS

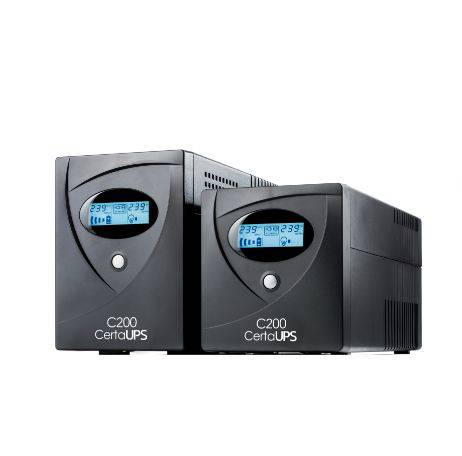

C200 Group Shot New

The C200 series is available in three power ratings 1000VA, 1500VA and 2000VA.

Overview

The CertaUPS C200 single phase UPS range produces a pure sinewave output making it perfect or supporting critical loads. The UPS systems include AVR (Automatic Voltage Regulator) as standard, making them extremely effective even in poor mains supply conditions. Ideal for supporting sensitive applications such as CCTV, alarm systems, EPOS and small office networks

Additional Features

  • Automatic start
  • Auto shut down in the event of a mains fail
  • Smart LCD display
  • Pure sinewave output
  • PWM based controller

Technical Specification

WARRANTY 3 Year Parts
RATING KVA 1 / 1.5 / 2
DIMENSIONS (WxDxH) 146W x 350D x 160H (1000VA) / 146W x 397D x 205H (1500/2000VA)
WEIGHT 9 / 12.2 / 13.7
INPUT PHASE Single Phase
INPUT VOLTAGE TOLERANCE RANGE 162-290VAC
INPUT FREQUENCY 50/60Hz (Auto Sensing)
OUTPUT OUTPUT PHASE Single Phase
OUTPUT POWER FACTOR 0.7
OUTPUT WAVEFORM Pure sinewave
OUTPUT VOLTAGE 220/230/240VAC (±10%)
OUTPUT FREQUENCY 50/60Hz (±1Hz)
OUTPUT EFFICIENCY >97%
BATTERY RUNTIME 2 minutes (1000VA), 3 minutes (1500VA), 2 minutes (2000VA)
BATTERY DC VOLTAGE 24VDC (All models)
BATTERY CHARGE CAPACITY 0.5A
MECHANICAL AC OUTLETS 3*C13 (Battery) and 1*C13 (Surge only) (1000VA), 5*C13 (Battery) and 1*C13 (Surge only) (1500/2000VA)
OPERATING TEMPERATURE TOLERANCE 0 - 25°C
STORAGE TEMPERATURE TOLERANCE 0 - 40°C
RELATIVE HUMIDITY <95% (non-condensing)
OPERATING ALTITUDE TOLERANCE <1000m
COMMUNICATION USB
OPTIONAL COMMS N/A
PARALLEL N/A
FUNCTIONS Off-Mode Charging, AVR, Auto-Restart, Cold Start, RJ11 andRJ45 Filters, LCD

Resources

User Manual

Product Brochure
