CertaUPSC400

CertaUPS
C400 010 B

The C400 series is available in three power ratings 1000VA, 2000VA and 3000VA

Overview

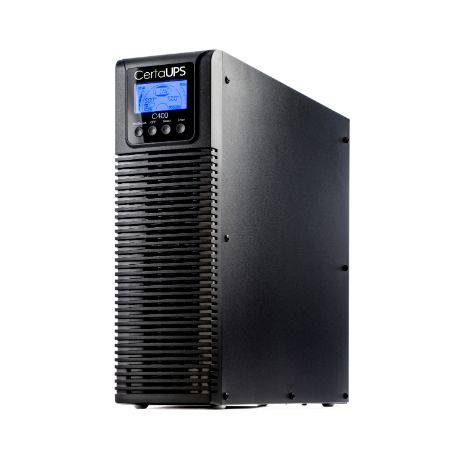

The CertaUPS C400 single phase UPS range presents the next generation of true online double conversion UPS solutions housed in a sophisticated tower uninterruptible power supply. These UPS are plug and play and are Ideal for small to medium sized IT systems, telecom centres and security facilities

Additional Features

  • Eco-mode function
  • Wide input voltage window
  • High efficiency
  • Selectable output voltage
  • Frequency converter feature
  • EPO connection
  • Intelligent communications slot
  • IEC plug retention clips
  • USB connectivity
  • Intelligent monitoring software
  • Server shut down in the event of a mains fail
  • Battery extension modules

Technical Specification

WARRANTY 3 Year Parts
RATING KVA 1 / 2 / 3
WARRANTY 3 Year Parts
DIMENSIONS (WxDxH) 144W x 356D x 228H (C400-010-B), 102W x 346D x 228H (C400-010-C), 190W x 399D x 327H (C400-020-B), 102W x 390D x 327H (C400-020-C), 190W x 399D x 327H (C400-030-B), 102W x 390D x 32andH (C400-030-C)
WEIGHT 9.2 (C400-010-B) / 3.9 (C400-010-C) / 17.4 (C400-020-B) / 6.4 (C400-020-C) / 22.7 (C400-030-B) / 6.4 (C400-030-C)
INPUT PHASE Single Phase
INPUT VOLTAGE 220/230/240VAC
INPUT VOLTAGE TOLERANCE RANGE 176-300VAC (100% load), 100-300VAC (40% load)
INPUT FREQUENCY 50/60Hz
INPUT FREQUENCY TOLERANCE RANGE ±10%
OUTPUT OUTPUT PHASE Single Phase
OUTPUT POWER FACTOR 0.9
OUTPUT WAVEFORM Sinewave
OUTPUT VOLTAGE 220/230/240VAC (±1%)
OUTPUT EFFICIENCY >89% (Line mode - 1000VA), >91% (Line mode - 2000/3000VA), >97.2% (Eco mode - 1000VA), >98% (Eco mode - 2000/3000VA)
BATTERY RUNTIME 5 minutes (C400-010-B / C400-020-B /C400-030-B), Dependent on battery capacity, (C400-010-C / C400-020-C / C400-030-C)
BATTERY DC VOLTAGE 24VDC (C400-010) / 48VDC (C400-020) / 72VDC (C400-030)
BATTERY CHARGE CAPACITY 1.5A (All 'B' models), 6A (All 'C' models)
MECHANICAL AC OUTLETS IEC C13*4 (C400-010-B), IEC C13*3 (C400-010-C), IEC C13*4 (C400-020-B), IEC C13*6 (C400-020-C), IEC C13*4 and C19*1 (C400-030-B), IEC C13*3 and terminal block (C400-030-C)
OPERATING TEMPERATURE TOLERANCE 0 - 40°C
STORAGE TEMPERATURE TOLERANCE 0 - 40°C
RELATIVE HUMIDITY <95% (non-condensing)
OPERATING ALTITUDE TOLERANCE <1000m
COMMUNICATION USB and RS232
OPTIONAL COMMS SNMP / dry contact relays / Modbus
PARALLEL N/A
FUNCTIONS EPO, Expandable Battery Modules, Backlit LCD
