CertaUPS C300R

CertaUPS

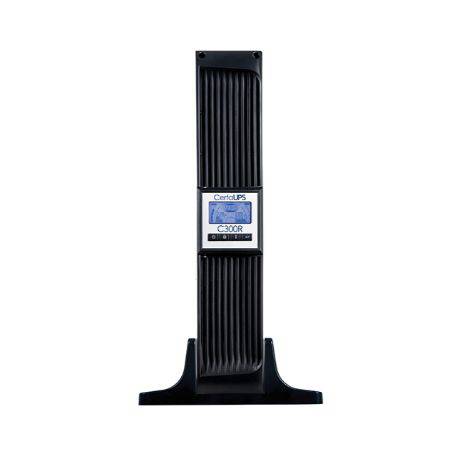

C300R 1000 CT CO 1500 2000 3000 (Vertical)

The C300R series is available in four power ratings 1000VA, 1500VA, 2000VA and 3000VA.

Overview

The CertaUPS C300R single phase range of line interactive UPS systems only take up 2U of rack space in a rackmount form and includes internal batteries for standard runtimes. The eurgonomic UPS comes with feet and rackrails allowing it to either be in rackmount or tower formation. The C300R series is ideal for telephone and security systems, IT servers and networks

Additional Features

  • High efficiency UPS up to 97% with 0.9 output power factor
  • Line interactive (VI) technology
  • Clear block LCD display
  • Serial, USB, SNMP, MODBUS and Relay connectivity
  • Network management for alerts and scheduled shutdown
  • Battery modules
  • Automatic voltage regulator (AVR)
  • User-replaceable hot swappable batteries

Technical Specification

WARRANTY 3 Year Parts
RATING KVA 1 / 1.5 / 2 / 3
DIMENSIONS (WxDxH) 440W x 430D x 88H (2U) (1000/1500VA), 440W x 600D x 88H (2U) (2000/3000VA)
WEIGHT 18 / 20 / 28 / 32
INPUT PHASE Single Phase
INPUT VOLTAGE 220/230/240VAC
INPUT VOLTAGE TOLERANCE RANGE 176-288VAC
INPUT FREQUENCY 50/60Hz
INPUT FREQUENCY TOLERANCE RANGE ±5Hz
OUTPUT PHASE Single Phase
OUTPUT POWER FACTOR 0.9
OUTPUT WAVEFORM Sinewave
OUTPUT VOLTAGE 220/230/240VAC (±5%)
OUTPUT FREQUENCY 50/60Hz
OUTPUT EFFICIENCY >95% (line mode), >82% (Battery mode)
BATTERY RUNTIME 5 minutes at full load (1000/2000VA) 3 minutes at full load (1500/3000VA)
BATTERY DC VOLTAGE 36VDC (1000VA/1500VA) / 72VDC (2000/3000VA)
BATTERY CHARGE CAPACITY 1.5A
MECHANICAL AC OUTLETS IEC C13*8 (1000VA / 1500VA / 2000VA models), IEC C13*8 and C19*1 (3000VA model)
OPERATING TEMPERATURE TOLERANCE 0 - 40°C
STORAGE TEMPERATURE TOLERANCE 0 - 40°C
RELATIVE HUMIDITY <95% (non-condensing)
OPERATING ALTITUDE TOLERANCE <1000m
COMMUNICATION RS232 and USB
OPTIONAL COMMS SNMP / dry contact relays / Modbus
PARALLEL N/A
FUNCTIONS EPO, RJ11 and RJ45 Filters, Expandable Battery Modules, Rack/Tower Flexibility, Rotatable LCD

Resources

User Manual

Product Brochure
