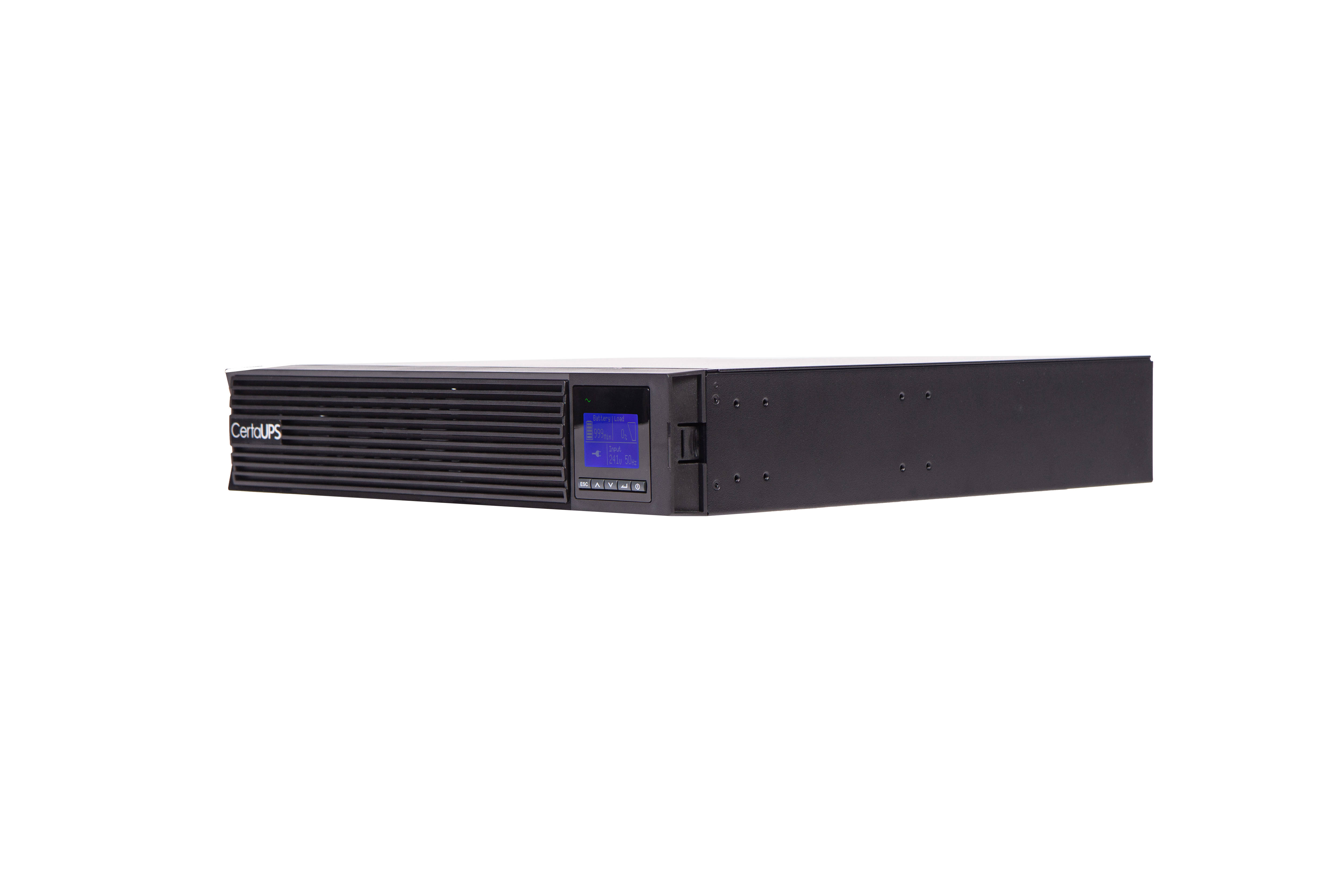

CertaUPS C450R
The C450R series is available in three power ratings 1000VA, 2000VA and 3000VA.
Overview
The CertaUPS C450R single phase range of online double conversion, unity power factor uninterruptible power supplies for tower or rack installation. Its compact and ergonomic rack mountable and floor standing design makes these UPS systems an ideal fit for many server cabinets, particularly in 2000VA and 3000VA configurations. The C450R comes complete with out of the box connectivity. An unlimited number of compatible CertaUPS UPS systems can be monitored any where in the world with the IoT monitoring software available for Android and iOS.
Key Features
Additional Features
- Unity power factor
- Online double conversion topology
- High efficiency up to 96%
- Pure sinewave output
- Rackmount or Tower compatible
- 2U convertible design
- Clear, user friendly display
- Out of the box connectivity with IoT monitoring app
- Serial, USB, Ethernet, WiFi, ModBus and Relay connectivity
Technical Specification
| WARRANTY |
3 Year Parts |
| RATING KVA |
1 / 2 / 3 |
| DIMENSIONS (WxDxH) |
438W x 445D x 85.5H (2U) (C450R-010), 438W x 600D x 85.5H (2U) (C450R-020 and C450R-030) |
| INPUT PHASE |
Single Phase |
| INPUT VOLTAGE |
160-300V 100% load |
| INPUT VOLTAGE TOLERANCE RANGE |
160-300V 100% load, 110-160V derating to 50% load linearly |
| INPUT FREQUENCY |
50/60Hz |
| INPUT VOLTAGE TOLERANCE RANGE |
±10% |
| OUTPUT OUTPUT PHASE |
Single Phase |
| OUTPUT POWER FACTOR |
1 |
| OUTPUT WAVEFORM |
Sine wave |
| OUTPUT VOLTAGE |
200/208/220/230/240 VAC |
| OUTPUT FREQUENCY |
50/60Hz (±10%) |
| BATTERY DC VOLTAGE |
36VDC (C450R-010) / 72VDC (C450R-020 and 030) |
| BATTERY CHARGE CAPACITY |
1.5A (All 'B' models), 8A (All 'C' models) |
| MECHANICAL AC OUTLETS |
IEC C13*8 (1000VA and 2000VA models), IEC C13*8 and C19*1 (3000VA model) |
| OPERATING TEMPERATURE TOLERANCE |
0 - 40°C |
| STORAGE TEMPERATURE TOLERANCE |
0 - 40°C |
| RELATIVE HUMIDITY |
<95% (non-condensing) |
| OPERATING ALTITUDE TOLERANCE |
<1000m |
| COMMUNICATION |
USB, RS232, Ethernet, WiFi, RS232 |
| OPTIONAL COMMS |
SNMP / dry contact relays / Modbus |
| PARALLEL |
N/A |
| FUNCTIONS |
EPO, Expandable Battery Modules, Rack/Tower Flexibility, Rotatable LCD |
