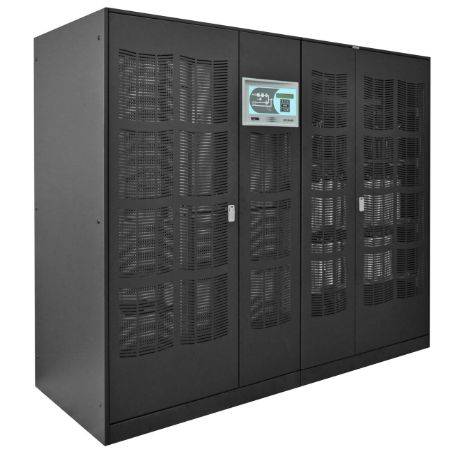

BorriB9600FXS
Online double conversion transformer based UPS system with a three phase output and ruggedized framework. The B9600 FXS is available from 400-800 kVA and can be paralleled up to 4.8MVA
Overview
The Borri B9600FXS is ideal for heating, ventilation and air conditioning equipment, safety and emergency systems, process control devices and machine tooling, critical infrastructures, medical equipment, data centre power protection.
Key Features
Additional Features
- Online double conversion topology
- Transformer based technology
- TUV certified high efficiency up to 95%
- Three year warranty
- Hot connection/disconnection of paralleled units for easy system resizing.
- IGBT rectifier
- Front access
- Smart Online functionality
- Standard and industrial applications
- Internal galvanic isolation transformer
- THDi 0.98%
Technical Specification
| WARRANTY | 3 Year Parts |
| RATING KVA | 400 / 500 / 600 / 800 |
| DIMENSIONS (WxDxH) | 1990W x 950D x 1920H (400kVA), 2440W x 950D x 2020H (500/600kVA), 3640W x 950D x 2020H (800kVA) |
| WEIGHT | 1820 / 2220 / 2400 / 3600 |
| INPUT PHASE | Three Phase |
| INPUT VOLTAGE | 400VAC |
| INPUT VOLTAGE TOLERANCE | -20% / +15% |
| INPUT FREQUENCY | 50/60Hz |
| INPUT FREQUENCY TOLERANCE RANGE | 45-65Hz |
| OUTPUT OUTPUT PHASE | Three Phase + Neutral |
| OUTPUT POWER FACTOR | 0.9 |
| OUTPUT WAVEFORM | Sinewave |
| OUTPUT VOLTAGE | 380/400/415VAC |
| OUTPUT FREQUENCY | 50-60Hz (Sync with mains ±2Hz) |
| OUTPUT EFFICIENCY | >94.5% (AC-AC) / >98% (Eco mode) / >96% (DC-AC) |
| BATTERY RUNTIME | Dependent on battery capacity |
| BATTERY DC VOLTAGE | 600 or 624VDC |
| BATTERY CHARGE CAPACITY | 60A / 80A / 80A / 120A |
| MECHANICAL AC OUTLETS | Hardwired |
| OPERATING TEMPERATURE TOLERANCE | 0-40°C |
| STORAGE TEMPERATURE TOLERANCE | -10 - +70°C |
| RELATIVE HUMIDITY | <95% (non-condensing) |
| OPERATING ALTITUDE TOLERANCE | <1000m |
| COMMUNICATION | USB and RS232 |
| OPTIONAL COMMS | SNMP / VFC / Modbus |
| PARALLEL | Up to 6 (others on request) |
| FUNCTIONS | EPO, Expandable Battery, Mimic LCD and keyboard, DCM charging, Boost charging |
